Dodgy dyno sheets

[Stuart]

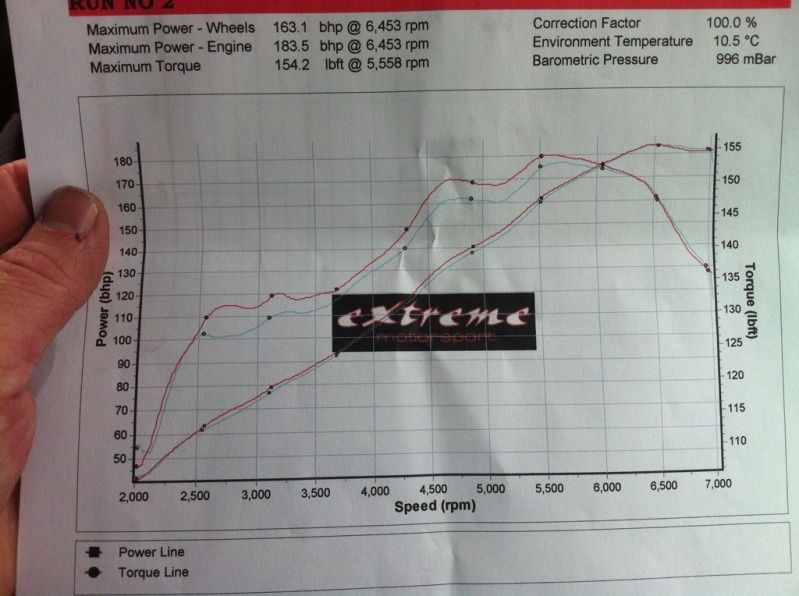

This doesn't look right to me. For starters, I always thought that the torque curve and power curve were supposed to cross @ 5250rpm..........



Any thoughts?

[Rob S]

That's what I thought, and assuming these people know what they're on about, this suggests the graph is wonky.

http://www.johnsonenginetechnology.com/ ... howto.html

[Danny@APT]

This doesn't look right to me. For starters, I always thought that the torque curve and power curve were supposed to cross @ 5250rpm..........

Only if the power and torque axis are to the same scale (and using units of bhp and lb ft).

Only had a quick look, but if you read up from approx 5252rpm along the bottom scale and check where it meets the power and torque curves, it seems about right- 150 bhp/150 lbft.
