Just got my car running on coil pack ignition.

Post by Miniwilliams »

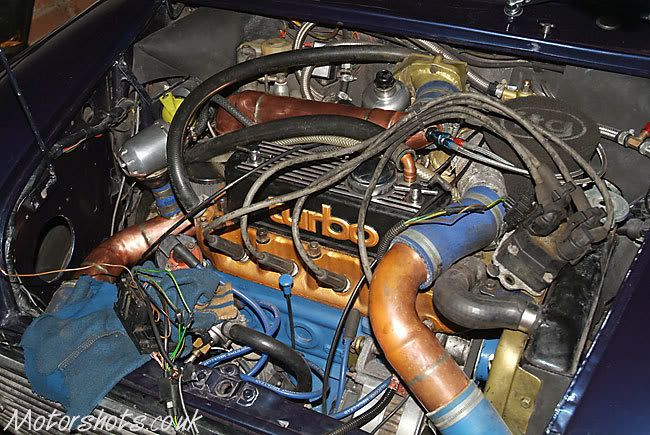

It's not pretty as it was wired up just to see if it works. and it started, so just got to wire in the contol box now as we are only running on 10 deg ignition. Hope now the plug will stay cleaner as well with the wasted spark.


BPs Official Freelance Photographer

Would you like to see your car in a magazine?
PM or E-mail me some details

http://www.mattwoodsphotography.com
1/4mile best 13.2 sec & best speed 116 mph

User avatar
jungle-jim
Posts: 2252
Joined: Tue Dec 05, 2006 9:43 pm
Location: naaaarwich

Post by jungle-jim »

that wasted spark unit looks roverish? :D

good stuff matt
BIG POWER GO KART ENDURANCE CHAMPION 2007


User avatar
madenglishman
Posts: 557
Joined: Thu Jul 27, 2006 11:08 pm

Post by madenglishman »

Matt you remind me of Doc Brown from 'Back to the Future'........I'm sure with the right tools you could build a flux capacitor :bandit:

Looking forward to seeing this thing rocket up the road again :o :o ......UNBELIEVABLE :twisted:
Dan

205 GTi....... for track and fun

V8 Jag ....... for pimping

Big power dyno shootout champion 07'

ScoobyandScrappy
Posts: 323
Joined: Mon Aug 07, 2006 9:57 pm
Location: WATTON NORFOLK

Post by ScoobyandScrappy »

no jim boy the coil pack looks like a ford escort/mondeo :roll: :roll: it will so breakdown :lol: :lol: :lol:
250 BHP 241LB FT

User avatar
Miniwilliams
Posts: 1326
Joined: Fri Jul 28, 2006 9:45 am
Location: East England
Contact:

Post by Miniwilliams »

Not far off Jim, But Spot on Lee, well done mate.
yes it's off a ford, not 100% what as it was got for me ;)

Dan i wish i was that clever mate, other wise i might be able to afford to drive a big car like yours :wink: :thumb: :wink:
BPs Official Freelance Photographer

Would you like to see your car in a magazine?
PM or E-mail me some details

http://www.mattwoodsphotography.com
1/4mile best 13.2 sec & best speed 116 mph

Bubble
Posts: 666
Joined: Tue Oct 24, 2006 1:46 pm
Location: Braintree, Essex

Post by Bubble »

Good work there Matt, will it be finished in time for the next meet?
Geoff Boston R34GTT RB30

TOTBV http://www.youtube.com/watch?v=hfS9A92zEwg
__________________________

PhatBob
Posts: 132
Joined: Wed Oct 11, 2006 1:50 pm
Location: Newmarket/Cambridge
Contact:

Post by PhatBob »

The Ford EDIS setup is a lovely way to get into engine management, I learnt loads getting an engine running using it, but went onto electronic control shortly after. What I did want to do was to use something like a turbo actuator on the trigger sensor to move its position relative to the crank trigger based on vaccum or boost, as the EDIS is locked at 10deg advance (as its in 'limp-home' mode) only the sensor's position would need to be moved.

Rob

User avatar
Miniwilliams
Posts: 1326
Joined: Fri Jul 28, 2006 9:45 am
Location: East England
Contact:

Post by Miniwilliams »

Well Bubble, I'll be there anyway just not sure if it will be ready in time for this coming meet, as I have to now wire up the mega jolt control box that will allow me to map it.

cheers PhatBob, yes it all seems to be a nice unit to start with, seems like you have played around a bit, do you think I could benefit from getting a motorsport coil pack for it over the standard unit?
BPs Official Freelance Photographer

Would you like to see your car in a magazine?
PM or E-mail me some details

http://www.mattwoodsphotography.com
1/4mile best 13.2 sec & best speed 116 mph

Jakester
Posts: 39
Joined: Tue Jan 09, 2007 7:15 pm
Location: Nr Lincoln

Post by Jakester »

What is wasted spark???

PhatBob
Posts: 132
Joined: Wed Oct 11, 2006 1:50 pm
Location: Newmarket/Cambridge
Contact:

Post by PhatBob »

Miniwilliams wrote:cheers PhatBob, yes it all seems to be a nice unit to start with, seems like you have played around a bit, do you think I could benefit from getting a motorsport coil pack for it over the standard unit?
I know that MSD do a plug in conversion but its not really needed until the boost you're running blows the spark out. I've used different coil packs with the EDIS controller so you can have junkyard fun if you want to chop and change.

Wasted spark is where the same coil sparks two cylinders, its set up so that it sparks for the ignition of the cylinder on its compression stroke, and of the cylinder on its exhaust stroke.

I favour wasted spark over coil on plugs because they have less failures, the one issue that you can run into is the coil charging times, those Ford coil packs need 3.8ms charge time, which means that the coils limit the RPM due to the charge time of the firing events, this only really effects speeds over 8k RPM though.
