6 point harness fitting

duncan · Post by **duncan** » Mon Feb 04, 2008 9:10 am

Stupid question as I cant find fitting instructions for the 6 point harnesses I have got.

Where should the two straps that go up between your legs be ideally attached (obviously the floor before some smart arse....)? Is there an ideal placement ?

ScoobieWRX · Post by **ScoobieWRX** » Mon Feb 04, 2008 9:17 am

I would have said either directly parallel to end of the cushion at the front of your seat a couple of inches or so under the seat at the front. I have seen a bucket seat in the past that has a slit a couple of inches in at the front of the seat for those very straps to go through. Never seen one again since though.

In a Scooby i would be inclined to attach it to the box section under the seat that runs across ways.

Gooey · Post by **Gooey** » Sun Feb 17, 2008 9:12 am

Do what the bloke done that built my XR2 before it was stripped and just dont attach them to anything :roll:

duncan · Post by **duncan** » Sun Feb 17, 2008 9:25 am

All fitted now - I got some great spreader plates from Alyn at ASP that just meant I had to drill the floor and screw the eyebolts through and into these.

Perfect

Nige · Post by **Nige** » Sun Feb 17, 2008 9:52 am

Thats what I did.

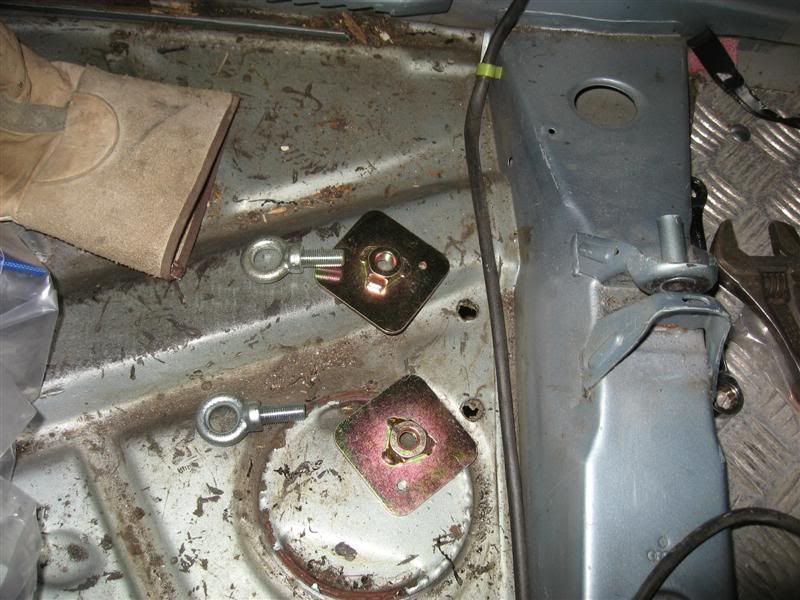

Wanted to make sure the 6-point harness was properly secured to the floor. Drilled two holes.

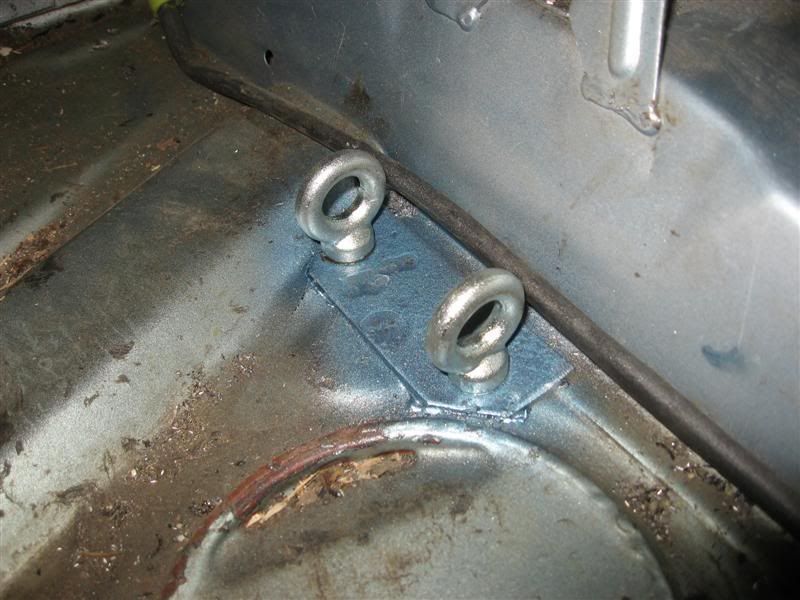

Made spreader plate for the top, sprayed holes and plate and fitted eyelets

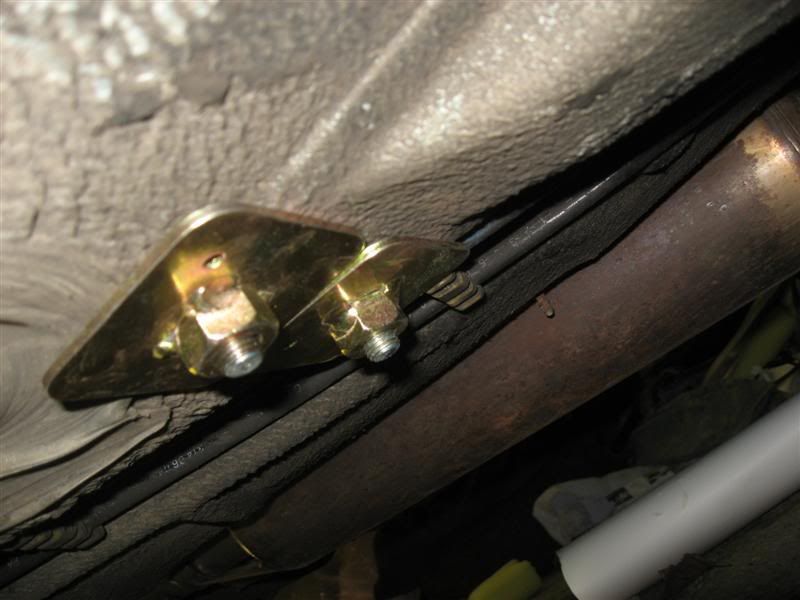

Used the plates I`d bought at Autosport to secure the eyebolts under the car :thumb:

Pike · Post by **Pike** » Mon Feb 18, 2008 9:01 am

Check the blue book as I think there are maxium/minimum angles in place for crutch straps.

Gerry H · Post by **Gerry H** » Mon Feb 18, 2008 11:32 am

This is a worthwhile find.

I have a 6 point to go in but the instructions with it may as well be in greek

Didn't think to look in the Blue Book :roll:

duncan · Post by **duncan** » Mon Feb 18, 2008 11:44 am

I couldnt see any pictures in the Blue Book or anything describing the exact location of these.

Gerry H · Post by **Gerry H** » Mon Feb 18, 2008 11:53 am

Page 178 shows a 'typical' installation but no detail for crotch straps.

Pike · Post by **Pike** » Mon Feb 18, 2008 12:38 pm

It used to be in the old section "E".
